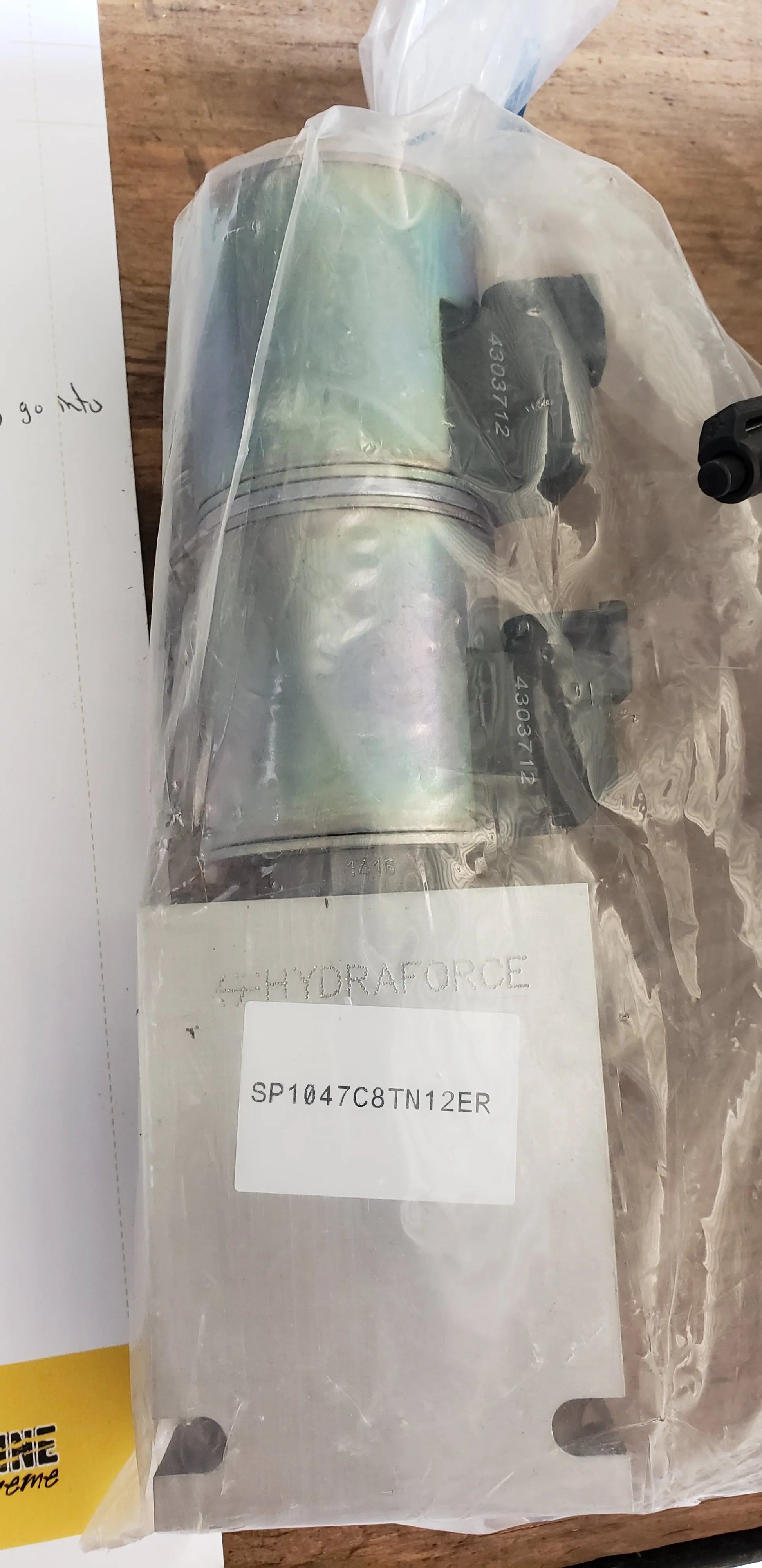

Hydra force SP10-47C

- Continuous-duty rated solenoid.
- Hardened precision spool and cage for long life.
- Optional coil voltages and terminations.
- Manual override option.
- Optional waterproof E-Coils rated up to IP69K.
- Efficient wet-armature construction.
- Cartridges are voltage interchangeable.
- Good linearity and hysteresis.
- Industry-common cavity.

Operating Pressure: 250 bar (3625 psi)
Flow: Up to 22 lpm (6 gpm) max.; 20.8 lpm (5.5 gpm) with manual override B or M
Internal Leakage: 310 ml/minute (19 in³/minute) max. per side at 207 bar (3000 psi)
Temperature: -40 to 100 °C (-40 to 212 °F) with Buna seals;
   -26 to 204 °C (-15 to 400 °F) with fluorocarbon seals
   -26 to 107 °C (-65 to 225 °F) with polyurethane seals
